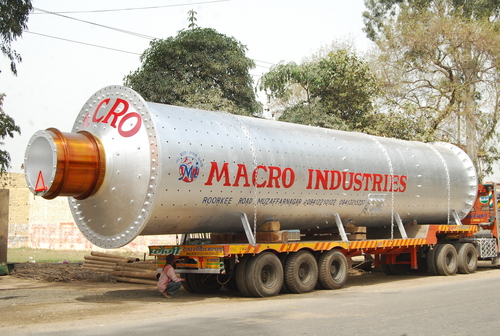

Industrial Ball Mill

Industrial Ball Mill
Industrial Ball Mill
Product Code : 01
Product Description

Backed by rich industry experience, we are able to manufacture, supply and export high quality Industrial Ball Mill. These products are manufactured by experienced professionals using high-grade stainless steel that is obtained vendors of high repute. The Industrial Ball Mill is widely applicable in agricultural, mineral processing and various other industries. We are able to offer these products in various sizes and shapes to meet the needs of our customers.

Other information:

Ball mill is mainly used for grinding materials in such production industries as cement, silicate product, new building materials, chemical engineering, non-ferrous and black metal, mineral processing, glass and ceramic, etc. It is used for grinding various ore and other grounded materials - dry or wet.


Structural Feature of Mill:
This is a principle and cylindrical revolving device, and belongs to external gear-driving mill. The materials are transported by feeder, and gets into mill chamber through hollow screw axis equably, and there is lining plate and steel balls in the chamber. When the cylinder body goes round and round, the steel ball is taken to certain height, then falls down, and the materials are struck and grinded heavily. The above action repeats constantly till the size of materials reaches the required fineness. The powdery materials are discharged through discharge grate plate, and the milling work is over.

Ball  mainly consists of feeding part, discharging part, gyre part, transmission part (decelerated machine, small transmission gear, motor, electric control) and so on. The hollow axis adopts cast steel, the lining plate can be replaced, the big gyre gear is made of forging rolling gear, and there is lining plate in the cylinder body, which has favorable abrasion resistance. The mill has the features of stable running and reliable working.

Structural Feature of Ball
The mill is widely used in such production industries as cement, silicate product, new building materials, corhart, chemical engineering, nonferrous and black metal, mineral processing, glass and ceramic, etc. It is used for grinding various ore and other grounded materials - dry or wet.

Mill Specification and Technical Data of Casting Machine ::

Type

Speed
r/min

Ball Weight (t)

Input Size
(mm)

Capacity
(t/h)

Power
(KW)

Weight
(t)

900*1800

38

1.5

20

0.65-2

18.5

3.6

900*3000

38

2.7

20

1.1-3.5

22

4.5

1200*2400

32

3.8

25

1.5-4.8

45

9.5

1200*3000

32

5

25

1.6-5

45

11.5

1200*4500

32

7

25

1.6-5.8

55

14

1500*3000

27

8

25

2-5

90

14.5

1500*4500

27

14

25

3-6

110

21

1500*5700

27

15

25

3.5-8

132

25

1830*3000

24

11

25

4-10

180

28

1830*4500

24

15

25

4-13

180

32

1830*6400

24

23

25

6.5-15

210

34.6

1830*7000

24

25

25

7.5-17

245

36.5

2200*5500

21

30

25

10-22

370

48.5

2200*6500

21

31

25

14-26

380

52.8

2200*7500

21

33

25

16-29

380

63

2400*7000

20.4

39.5

25

20-32

475

70.5
