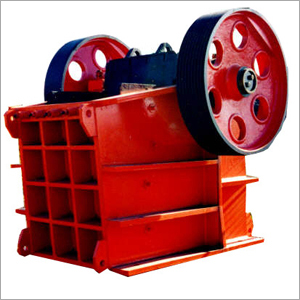

Industrial Jaw Crusher

Industrial Jaw Crusher
Industrial Jaw Crusher
Product Code : 14
Product Description

We are counted among the most distinguished organizations that are engaged in manufacturing, supplying and exporting Industrial Jaw Crusher. These products are widely appreciated in the market for their sturdy construction, longer service life and outstanding performance. These crushers are used for crushing rocks, marbles, construction materials in mining and construction industries. We manufacture the Industrial Jaw Crusher in accordance to the industry laid parameters and norms. To meet the specific requirements of our customers, we offer these products in various specifications.

Other information:

This series of jaw crusher can reach the crushing ratio of 4-6 and the shape of final product is even. They are widely applied to crush high hardness, mid hardness and soft rocks and ores such as slags, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Jaw  can be used in mining, metallurgical industry, construction, road and railway building, conversancy, chemistry, etc.

Crusher Features:


1. simple structure, easy maintenance;
2. stable performance;
3. even final particles and high crushing ratio.

Crusher Operating principle:


This crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.

Model

Feed inlet
size(mm)

Max inlet
size(mm)

Capacity
(t/h)

Electric
power(kw)

Overall size
LxWxH(mm)

Weight
(t)

PE150X250

150X250

125

1-5

5.5

875X758X850

0.81

PE250X400

400X250

210

5-20

15

1450X1315X1296

2.8

PE400X600

600X400

340

16-65

30

1565X1732X1586

6.5

PE500X750

750X500

425

45-100

55

1890X1916X1870

10.1

PE600X900

900X600

500

50-120

55-75

2305X1840X2298

15.5

PE750X1060

1060X750

630

52-180

110

2450X2472X2840

28

PE900X1200

900X1200

750

140-260

135

3200x3050x2950

54.5

PE1000X1200

1000X1200

850

315-342

135

3335x3182x3025

57

PE1200X1500

1200x1500

1020

400-800

160

4200x3750x3820

100.9

PEX250X1000

1000X250

210

16-52

30-37

1530x1992x1380

6.5

PEX250X1200

1200X250

210

20-60

37

1900x2192x1430

7.7
