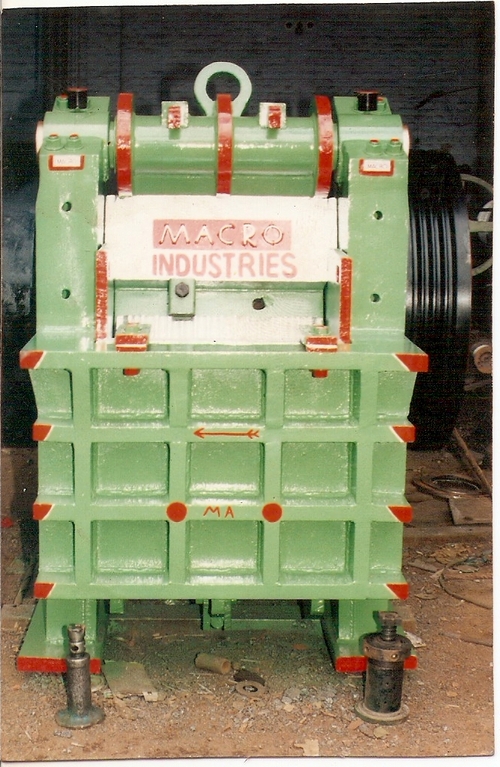

Jaw Crushers

Jaw Crushers
Jaw Crushers
Product Code : 13
Product Description

We have marked a distinct position in the market by providing high quality Jaw Crushers. These products are used to crush rocks, construction material, marble and many more. These crushers are manufactured using high-grade stainless steel that is procured from the well-known vendors of market with the aid of our sourcing agents. Latest tools and machinery is employed by our expert engineers to manufacture these Jaw Crushers. These products require less maintenance and low power to operate. Furthermore, we are able to offer these products in various specification to meet our clients' requirements.

Other information:

Jaw Crushers:
This series of jaw crusher can reach the crushing ratio of 4-6 and the shape of final product is even. They are widely applied to crush high hardness, mid hardness and soft rocks and ores such as slags, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Jaw Crusher can be used in mining, metallurgical industry, construction, road and railway building, conversancy, chemistry, etc.

Jaw Crusher Features:
1. simple structure, easy maintenance;
2. stable performance;
3. even final particles and high crushing ratio.

Jaw Crusher Operating principle:


This jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.

Model

Feed inlet
size(mm)

Max inlet
size(mm)

Capacity
(t/h)

Electric
power(kw)

Overall size
LxWxH(mm)

Weight
(t)

PE150x250

150x250


125

1-5

5.5

875x758x850

0.81

PE250x400

400x250

210

5-20

15

1450x1315x1296

2.8

PE400x600

600x400

340

16-65

30

1565x1732x1586

6.5

PE500x750

750x500

425

45-100

55

1890x1916x1870

10.1

PE600x900

900x600

500

50-120

55-75

2305x1840x2298

15.5

PE750x1060

1060x750

630

52-180

110

2450x2472x2840

28

PE900x1200

900x1200

750

140-260

135

3200x3050x2950

54.5

PE1000x1200

1000x1200

850

315-342

135

3335x3182x3025

57

PE1200x1500

1200x1500

1020

400-800

160

4200x3750x3820

100.9

PEX250x1000

1000x250

210

16-52

30-37

1530x1992x1380

6.5

PEX250x1200

1200x250

210

20-60

37

1900x2192x1430

7.7
